Metal Louvers Noise Barrier

Wechat: chinainnovat
Tel: +86 311 8089 6711
Skype: unitedmetalmesh
Email: sales@chinainnovat.com
FEEDBACK

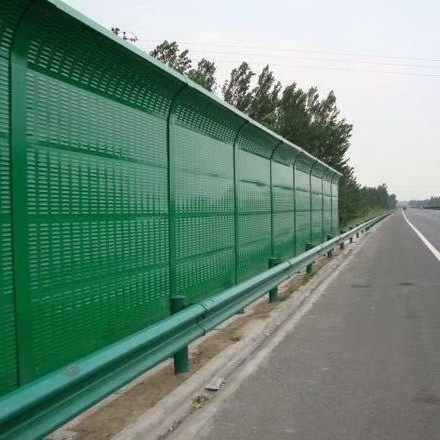

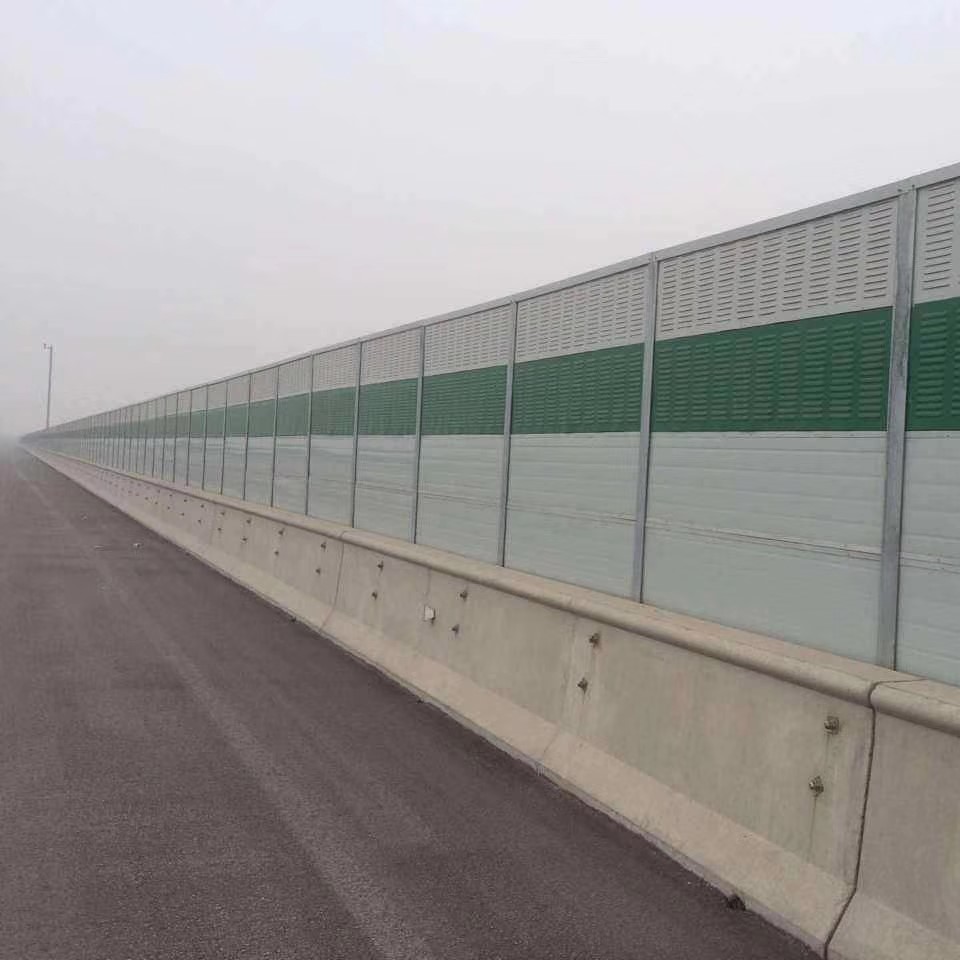

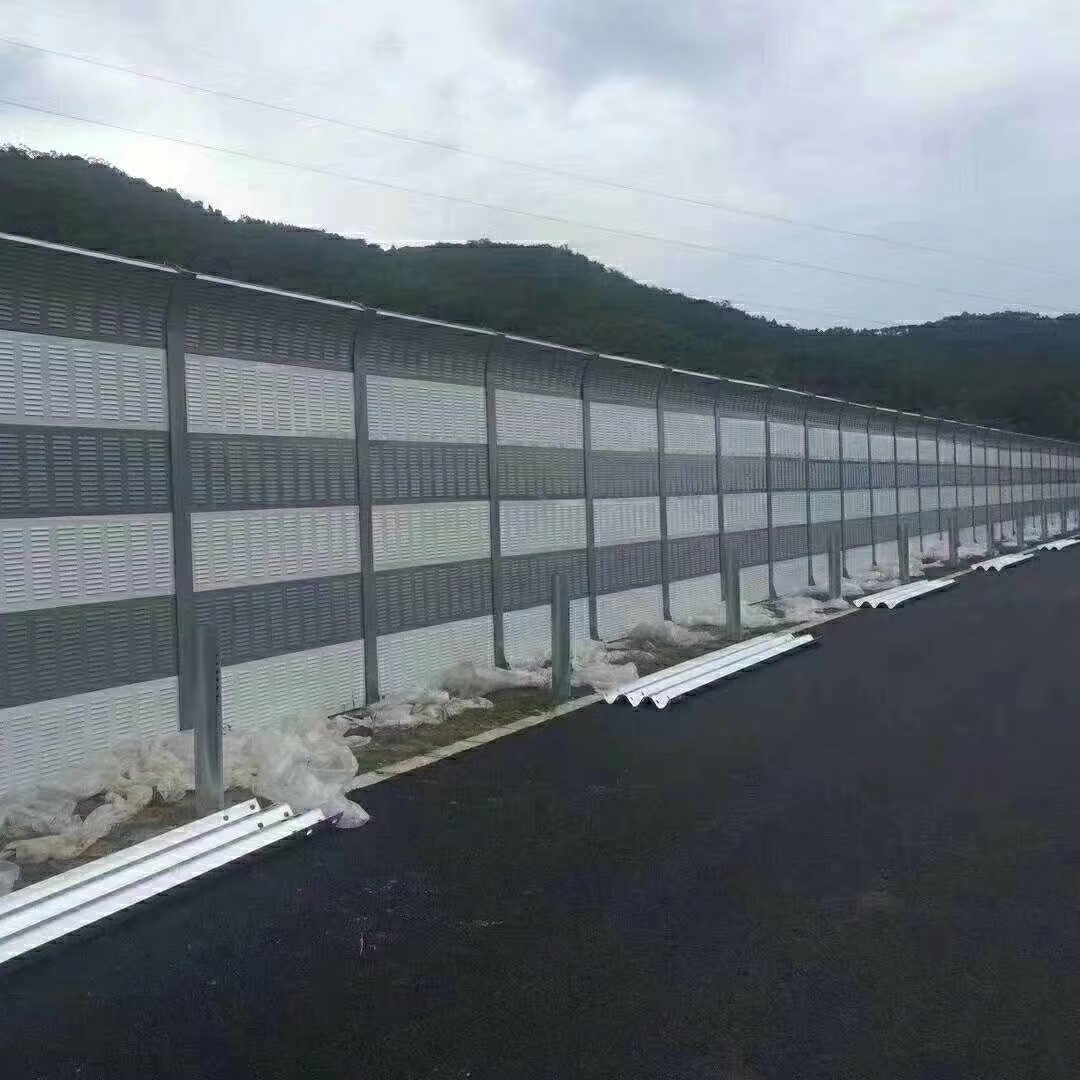

Noise barrier (also called a soundwall, sound berm, sound barrier, or acoustical barrier) is an exterior structure designed to protect inhabitants of sensitive land use areas from noise pollution. Noise barriers are the most effective method of mitigating roadway, railway, and industrial noise sources – other than cessation of the source activity or use of source controls.

Sound Absorption Coefficient

Frequency(Hz)	100	125	160	200	250	315	400	500	630
Sound Absorption Coefficient	0.21	0.24	0.36	0.41	0.64	0.81	0.98	1.02	0.96
Frequency(Hz)	800	1000	1250	1600	1600	2500	3150	4000	5000
Sound Absorption Coefficient	0.91	0.96	1.05	1.12	1.12	1.10	1.04	0.99	0.94

Noise Barrier Specification

Sheet Material	Galvanzied Steel Sheet, Aluminum Sheet or PC Board
Appearance	Louvers
Shape	Flat, Top Straight-bend, Top Curved, Arc-shape, Concave-convex
Insert Material	Glass Wool
Sheet Thickness	0.5-2mm or Customized
Panel Width	500mm or Customized
Panel Length	2000mm or Customized
Panel Thickness	40-100mm or Customized
Post Size	100x100x6x8mm, 125x125x6.5x9mm, 150x150x7x10mm, 175x175x7.5x11mm
